App Class Reference

#include <App.hpp>

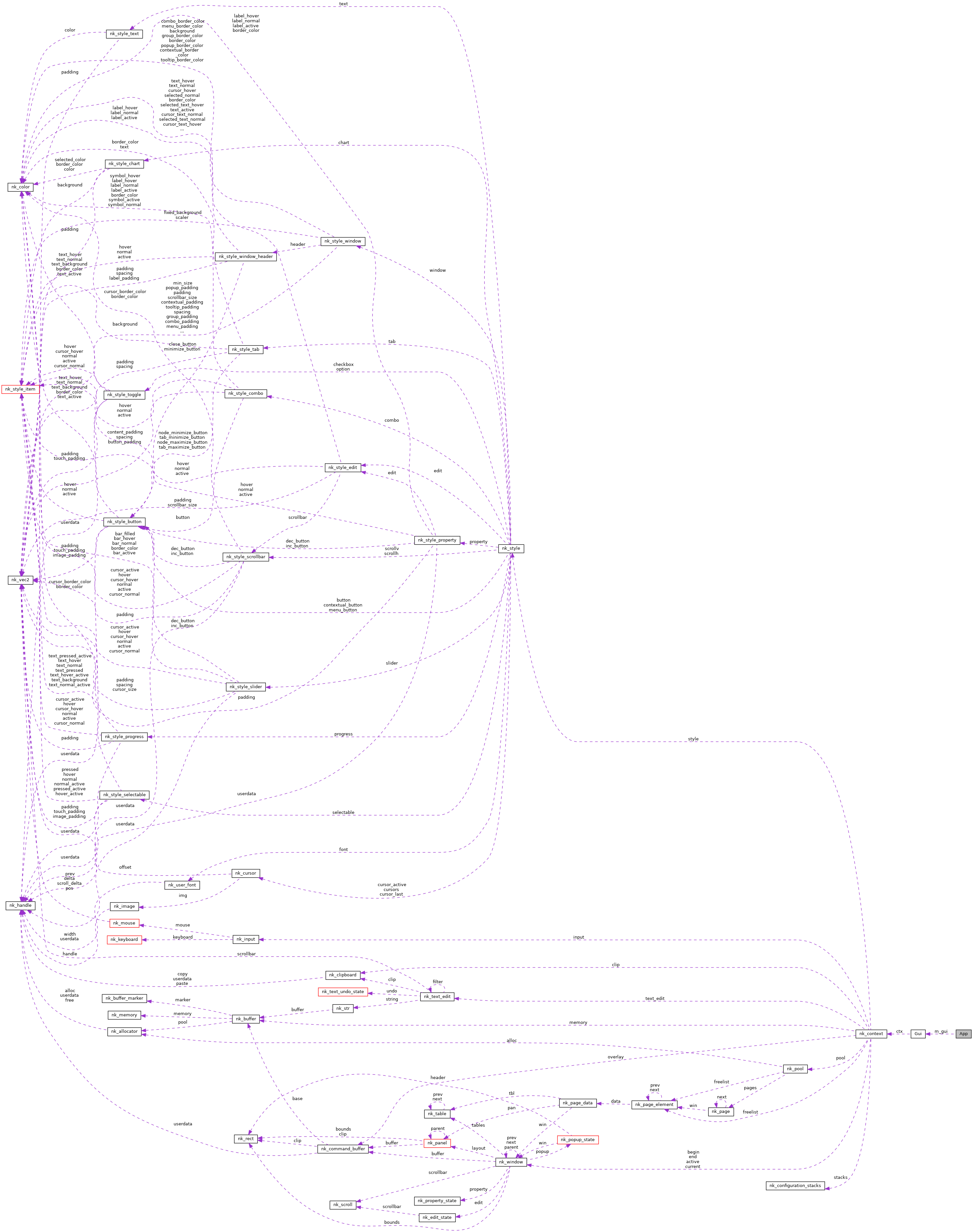

Collaboration diagram for App:

Public Types
enum	commandEnum {   DRAW, CLEAR, ERASE, UNDO,   REDO }

Public Member Functions
	App ()
	The constructor of the App class that initializes certain crucial values for the application. More...
	App (sf::IpAddress ipAddress, int port)
	The second constructor of the App class that initializes certain crucial values for the application but here it takes in two arguments for networking purposes. More...
GeneralBrush &	getBrush ()
	Return the current brush instance of the App. More...
BrushFactory	getBrushFactory ()
	Return the brush factory of App. More...
void	setBrush (GeneralBrush *brush)
	Set the current brush. More...
void	addCommand (Command *c)
	The addCommand function servers two purpose, first is adding the command to the redo stack and the second is executing the command so it can be reflected on the canvas. More...
void	executeCommand (Command *c)
	The execute Command function helps execute the command to generate pixel upon input from the user, the method is being called from AddCommand() function. More...
void	undoCommand (bool sendMessage)
	The undoCommand function unodoes the the pixel in reverse chronological order from a stack recursively. More...
void	redoCommand (bool sendMessage)
	The redo commands redo an undo command until if there is an input in between. More...
void	undoCommandNetwork ()
	The undoCommand function unodoes the the pixel in reverse chronological order for the network i.e so the clients connected get the pixels created and erased on canvas. More...
void	redoCommandNetwork ()
	The redo commands redo an undo command until if there is an input in between for the network i.e so the clients connected get the pixels created and erased on canvas. More...
sf::Image &	getImage ()
	Return a reference to our m_image, so that we do not have to publicly expose it. More...
void	setImage (sf::Image *newImage)
	Sets the image passed in from the parameter for the App class. More...
sf::Texture &	getTexture ()
	Return a reference to our m_Texture so that we do not have to publicly expose it. More...
sf::RenderWindow &	getWindow ()
	Return a reference to our m_window so that we do not have to publicly expose it. More...
std::stack< Command * >	getUndoStack ()
	returns the current undo stack where all the commands to be undone are stored More...
std::stack< Command * >	getRedoStack ()
	returns the current redo stack where all the commands to be redone are stored More...
void	destroy ()
	destroy we manually call at end of our program. More...
void	init (void(*initFunction)(void))
	Initializes the App and sets up the main rendering window(i.e. our canvas.) More...
void	updateCallback (void(*updateFunction)(App &app))
	Set a callback function which will be called each iteration of the main loop before drawing. More...
void	drawCallback (void(*drawFunction)(App &app))
	Set a callback function which will be called each iteration of the main loop after update. More...
void	loop (App &app)
	The main loop function which handles initialization and will be executed until the main window is closed. Within the loop function the update and draw callback functions will be called. More...
void	setBackgroundColor (sf::Color *colorPassed)
	Set a reference to m_backgroundColor. More...
sf::Color &	getBackgroundColor ()
	Return a reference to our m_backgroundColor so that we do not have to publicly expose it. More...

Public Attributes
sf::TcpSocket	clientSocketInApp
sf::Socket::Status	statusInApp
sf::Packet	packetInApp
unsigned int	pmouseX
unsigned int	pmouseY
unsigned int	mouseX
unsigned int	mouseY
int	commandFlag = 1
commandEnum	m_prevCommand
bool	onErase = false
sf::RenderWindow *	m_window
Gui *	m_gui

Member Enumeration Documentation

commandEnum

enum App::commandEnum

Enumerator
DRAW
CLEAR
ERASE
UNDO
REDO

Constructor & Destructor Documentation

App() [1/2]

App::App

(

)

The constructor of the App class that initializes certain crucial values for the application.

App() [2/2]

App::App	(	sf::IpAddress	ipAddress,
		int	port
	)

The second constructor of the App class that initializes certain crucial values for the application but here it takes in two arguments for networking purposes.

Parameters

ipAddress	the IP Address of the server to be passed for the client to connect with the server
port	number of the server running

Member Function Documentation

addCommand()

void App::addCommand

(

Command *

c

)

The addCommand function servers two purpose, first is adding the command to the redo stack and the second is executing the command so it can be reflected on the canvas.

Parameters

c	a command object that is being passed, it can be draw, erase or clear

destroy()

void App::destroy

(

)

destroy we manually call at end of our program.

drawCallback()

void App::drawCallback

(

void(*)(App &app)

drawFunction

)

Set a callback function which will be called each iteration of the main loop after update.

Parameters

drawFunction

is a function that takes in App object as an argument so it can be executed later in the application

executeCommand()

void App::executeCommand

(

Command *

c

)

The execute Command function helps execute the command to generate pixel upon input from the user, the method is being called from AddCommand() function.

Parameters

c	a command object that is being passed, it can be draw, erase or clear

getBackgroundColor()

sf::Color & App::getBackgroundColor

(

)

Return a reference to our m_backgroundColor so that we do not have to publicly expose it.

getBrush()

GeneralBrush & App::getBrush

(

)

Return the current brush instance of the App.

Returns

m_brush a poiner to m_brush of the App class

getBrushFactory()

BrushFactory App::getBrushFactory

(

)

Return the brush factory of App.

Returns

m_brushFactory a poiner to m_brushFactory of the App class

getImage()

sf::Image & App::getImage

(

)

Return a reference to our m_image, so that we do not have to publicly expose it.

Returns

m_image a poiner to m_image of the App class

getRedoStack()

std::stack< Command * > App::getRedoStack

(

)

returns the current redo stack where all the commands to be redone are stored

Returns

m_redo,

getTexture()

sf::Texture & App::getTexture

(

)

Return a reference to our m_Texture so that we do not have to publicly expose it.

Returns

m_texture a poiner to m_texture of the App class

getUndoStack()

std::stack< Command * > App::getUndoStack

(

)

returns the current undo stack where all the commands to be undone are stored

Returns

m_undo

getWindow()

sf::RenderWindow & App::getWindow

(

)

Return a reference to our m_window so that we do not have to publicly expose it.

Returns

m_window a poiner to m_window of the App class

init()

void App::init

(

void(*)(void)

initFunction

)

Initializes the App and sets up the main rendering window(i.e. our canvas.)

Parameters

initFunction

a pointer to a function that is executed later when the program is initiated

loop()

void App::loop

(

App &

app

)

The main loop function which handles initialization and will be executed until the main window is closed. Within the loop function the update and draw callback functions will be called.

Parameters

app	the instance of app class passed so the it can be used to execute various functions

redoCommand()

void App::redoCommand

(

bool

sendMessage

)

The redo commands redo an undo command until if there is an input in between.

Parameters

sendMessage

a bool value to check if the message has been sent over the network for conditional logic

redoCommandNetwork()

void App::redoCommandNetwork

(

)

The redo commands redo an undo command until if there is an input in between for the network i.e so the clients connected get the pixels created and erased on canvas.

setBackgroundColor()

void App::setBackgroundColor

(

sf::Color *

colorPassed

)

Set a reference to m_backgroundColor.

Parameters

colorPassed

the color of the background

setBrush()

void App::setBrush

(

GeneralBrush *

brush

)

Set the current brush.

Parameters

brush

the brush to be set is passed as an argument for the App class

setImage()

void App::setImage

(

sf::Image *

newImage

)

Sets the image passed in from the parameter for the App class.

Parameters

newImage

the image to be set for the App class

undoCommand()

void App::undoCommand

(

bool

sendMessage

)

The undoCommand function unodoes the the pixel in reverse chronological order from a stack recursively.

Parameters

sendMessage

a bool value to check if the message has been sent over the network for conditional logic

undoCommandNetwork()

void App::undoCommandNetwork

(

)

The undoCommand function unodoes the the pixel in reverse chronological order for the network i.e so the clients connected get the pixels created and erased on canvas.

updateCallback()

void App::updateCallback

(

void(*)(App &app)

updateFunction

)

Set a callback function which will be called each iteration of the main loop before drawing.

Parameters

updateFuntion

is a function that takes in App object as an argument so it can be executed later in the application

Member Data Documentation

clientSocketInApp

sf::TcpSocket App::clientSocketInApp

commandFlag

int App::commandFlag = 1

m_gui

Gui* App::m_gui

m_prevCommand

commandEnum App::m_prevCommand

m_window

sf::RenderWindow* App::m_window

mouseX

unsigned int App::mouseX

mouseY

unsigned int App::mouseY

onErase

bool App::onErase = false

packetInApp

sf::Packet App::packetInApp

pmouseX

unsigned int App::pmouseX

pmouseY

unsigned int App::pmouseY

statusInApp

sf::Socket::Status App::statusInApp

---

The documentation for this class was generated from the following files:

• include/App.hpp
• src/App.cpp
